Highlight

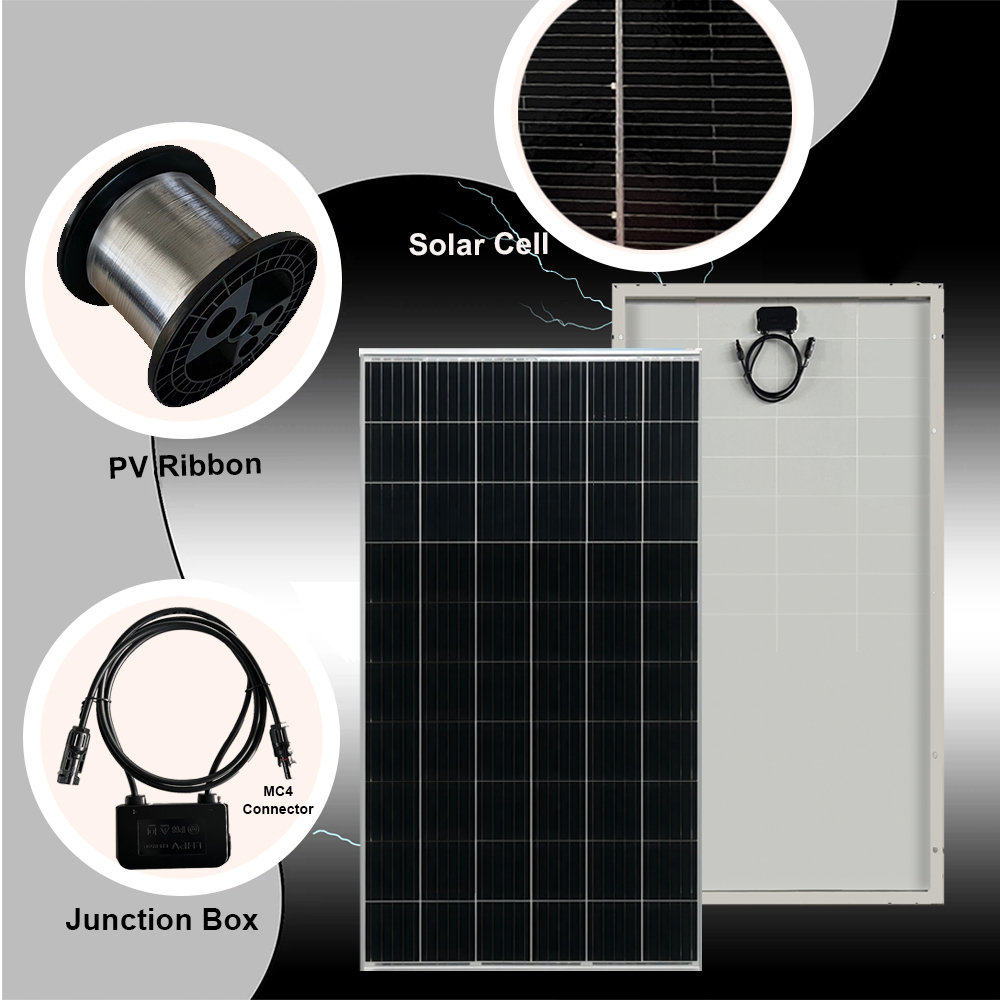

CELL TYPE P Type/MBB/Monocrystal/Half-Cell
HIGH EFFICIENCY, HIGH GENERATION Based on 182mm wafer, more uniform current collection capability,Half-Cell design reduces internal current and internal loss and improves output of module power.
EXCELLENT ANTI-PID PERFORMANCE Cell manufacturing technology optimization and materials control will help reduce PID degradation rate to the minimum.
SUPPORT 1500V SYSTEM Increase the number of system modules in series, reduce overall cost of terminal power plant.
STRONG MECHANICAL LOAD CAPACITY Withstand snow pressure up to 5400Pa on the front face and wind pressure up to 2400Pa on the rear face.
| ELECTRICAL PARAMETERS(STC) | ||||
|
Max Power (Pmax/W) |
410 | 415 | 420 |  |
|
Max Power Voltage(Vmp/V) |
31.30 | 31.49 | 31.68 | |
|
Max Power Current (Imp/A) |
13.10 | 13.18 | 13.26 | |
|
Open Circuit Voltage(Voc/V) |
37.79 | 38.08 | 38.32 | |
|
Short Circuit Current (Isc/A) |
13.81 | 13.87 | 13.95 | |
|
Module Efficiency (%) |
21.00 | 21.25 | 21.51 | |
|
STC(Standard Test Condition): AM1.5, Irradiance 1000W/m², Cell Temperature 25℃ |
||||
|
ELECTRICAL PARAMETERS（NMOT) |
||||
|
Max Power (Pmax/W) |
307.55 | 311.11 | 315.08 |  |
|
Max Power Voltage(Vmp/V) |
29.18 | 29.35 | 29.53 | |
|
Max Power Current (Imp/A) |
10.54 | 10.60 | 10.67 | |
|
Open Circuit Voltage(Voc/V) |
35.81 | 36.09 | 36.32 | |
|
Short Circuit Current (Isc/A) |
11.20 | 11.25 | 11.31 | |
|
NMOT(Nominal Module Operating Temperature): Irradiance 800W/m², Ambient Temperature 20℃, Wind Speed 1m/s |
||||
|
TEMPERATURE CHARACTERISTICS |
|
|
Cell Operating Temperature |
42.5±2℃ |
|
Temperature Coefficient of Isc |
0.054%/ ℃ |
|
Temperature Coefficient of Voc |
- 0.262%/ ℃ |
|
Temperature Coefficient of Pmax |
- 0.341%/ ℃ |
|
MECHANICAL PARAMETERS |
||
|
Cell Type |
P Type/MBB/Monocrystal/Half-Cell |
|
|
Number of Cells |
108（6×9×2） |
|
|
Weight |
20.7±1.0kg |
|
|
Dimension |
1722×1134×30mm |
|
|
Glass |
3.2mm Tempered Coated Glass |
|
|
Encapsulating Material |
EVA |
|
|
Backsheet |
Fluorinated backsheet /Fluorine-free backsheet |
|
|
Frame |
Anodized Aluminum |
|
|
Junction Box |
Protection Degree IP68 |
|
|
Cable |
4.0 mm²/+350,-250mm or Customized Length |
|
|
OPERATING CONDITIONS |
|
|
Max System Voltage |
1500V |
|
Operating Temperature |
-40℃~+85℃ |
|
Max Series Fuse Rating |
25A |
|
Front Face Static Load (snow etc) |
5400Pa |
|
Rear Face Static Load (wind etc) |
2400Pa |
|
Installation should strictly obey the installation Manual of Solargiga Energgy.. |
|
|
PACKING INFORMATION |
|
|
36pcs/pallet |
936pcs/40'HQ |
|
*Power Test Uncertainty +/-3% |
|
Certifications
